Amp Maker PWAM01 power transformer
Now Mark 2 allowing cooler long term running, and also now vacuum impregnated.
£47.79
* The 0-190V winding produces around 260V when rectified – great for EL84-based amps. There’s the full 160mA available, so you can run a pair in push-pull, parallel SE or even in stereo.
* The 0-275V winding gives typically 360V when rectified – designed for octal power valves (EL34, 6L6, etc) in more powerful SE amps (15W or so). This also has 160mA available, so it’s also perfect for push-pull amps with lower-power valves, such as the EL84 and 6V6.
* The 190-275V winding is also available, and gives around 115V when rectified. This is a ‘freebie’ – a side effect of the two main values I chose – but it adds a really useful option to use in amp projects…
With these asymmetrical windings, there are three combinations available to run into the rectifier bridge. This means you can use a 3-position rotary switch to get a switchable B+ supply in your amp. With the ratios given you get:
* Full power from the 0-275V winding
* Half-power from the 0-190V winding
* 1/10th power from the 190-275V winding
It’s like an ultra-simple version of Power Scaling (seeKevin O’Connor’s London Power Website for the cost of a switch! With 3A at 6.3V available for heaters, this is a very flexible transformer for amps up to 18W or so in output.
It’s 78mm wide, 70mm deep and 64mm tall, with standard solder lugs for all primary and secondary connections. It’s available in a lay-down style, to drop through a rectangular cut-out in the chassis (such as that on AC04 small and AC02 medium chassis). The rectangular cut-out should be 54x49mm, and the four 4mm mounting bolts are on 64x51mm centres. This type has a dual 120/240V primary winding.

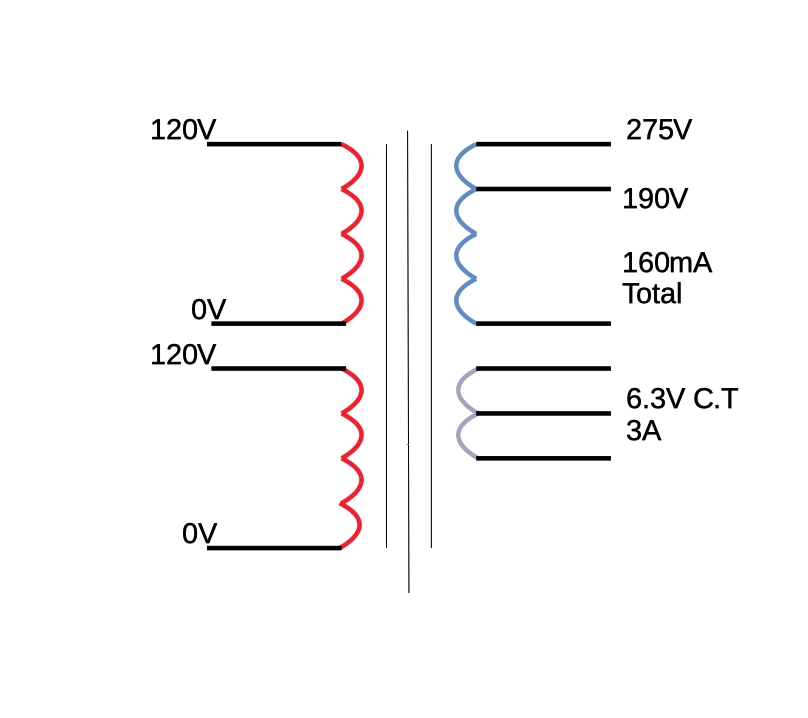

2 x 120V
0 – 190V – 275V @ 160mA
Heater winding 6.3V at 3A centre tapped.
High quality silicon steel
Hand laminated for the best stacking factor, and accuracy.
Separate primary and secondary sections for safety.
High quality enamelled copper wire.
Wound using CNC winders for highly accurate wire placement and turns count.
1.22Kg
Built and tested to safety standard BS EN 61558-1 2005
| Weight | 1.3 kg |
|---|---|
| Mounting type | Drop through, Clamp, Frame |
| Primary Voltage | European, US |
Here are dimensional diagrams for this transformer.
Please refer to the relevant key below for the dimensions.
| Label | Description | Dimension (mm) |
|---|---|---|
| A | Width | 64 |
| B | Length | 76 |
| C | Height | 55 |
| D | Cutout width | 46 |
| E | Cutout length | 53 |
| F | Fixing length | 64 |
| G | Fixing width | 51 |
| H | Mounting hole diameter | 4 |
Only logged in customers who have purchased this product may leave a review.
drop_through.pdf
Rinus Middendorp (verified owner) –
I use these transformer on 18 Watt Marshall 6v6 amps.
They perform very well!!
